PTFE H-Cell Kit

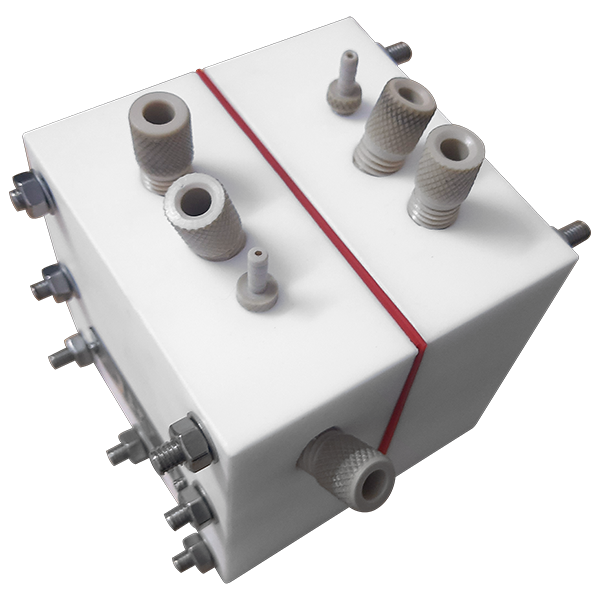

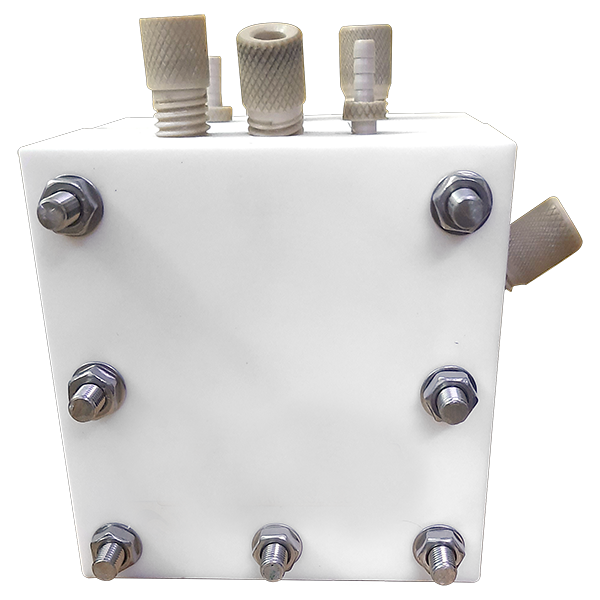

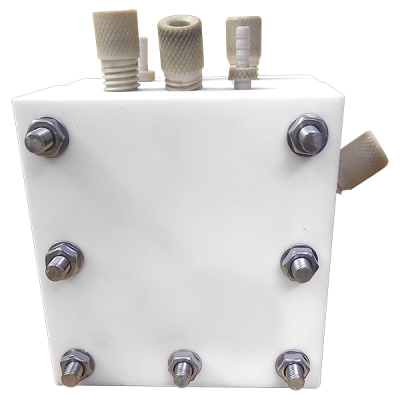

Our PTFE Based H-Cell Kit is a fully equipped dual-compartment electrochemical H-Cell Kit designed for membrane resistance studies. With PTFE construction, the cell is suitable for organic or aqueous electrolytes and includes a gas out PEEK port with silicon tubing. This cell has thermal control via a recirculating glass tube and can be used for CO2 reduction with gas in/out at the top.

Available volumes: 20 mL, 50 mL, 100 mL, 500 mL, and 1000 mL. Each compartment measures 95 mm x 95 mm x 20 mm, with a recommended membrane size of 4 x 4 cm² and an exposed area of 2 x 2 cm

Applications

  • Membrane Research
  • Fuel Cell Studies
  • Electrochemical Water Spitting
  • ASTM Grade Corrosion Studies
  • Redox Flow Batteries
  • CO2 Reduction Studies
  • Reference Electrode Testing

What's Included

20 mL H-Cell, PTFE - Gamry Part #990-00548
Includes:

PTFE reservoirs (2), SS304 Screws (10), SS304 washer (20), SS304 Nut (20), Suitable spanner (2),Silicon Gasket (3), Fixing Hole (7), 6.5 mm electrode port with locking nut (PEEK) (Total 4 – Two for each compartment).
Temperature control – cooling glass tubes included (2)

50 mL H-Cell, PTFE, no thermal control - Gamry Part #990-00549
Includes:

PTFE reservoirs (2), SS304 Screws (10), SS304 washer (20), SS304 Nut (20), Suitable spanner (2),Silicon Gasket (3), Fixing Hole (7), 6.5 mm electrode port with locking nut (PEEK) (Total 4 – Two for each compartment).

50 mL H-Cell, PTFE - Gamry Part #990-00550
Includes:

PTFE reservoirs (2), SS304 Screws (10), SS304 washer (20), SS304 Nut (20), Suitable spanner (2), Silicon Gasket (3), Fixing Hole (7), 6.5 mm electrode port with locking nut (PEEK) (Total 4 – Two for each compartment).
Temperature control – cooling glass tubes included (2)

100 mL H-Cell, PTFE - Gamry Part #990-00551
Includes:

PTFE reservoirs (2), SS304 Screws (10), SS304 washer (20), SS304 Nut (20), Suitable spanner (2), Silicon Gasket (3), Fixing Hole (7), 6.5 mm electrode port with locking nut (PEEK) (Total 4 – Two for each compartment).
Temperature control – cooling glass tubes included (2)

500 mL H-Cell, PTFE - Gamry Part #990-00552
Includes:

PTFE reservoirs (2), SS304 Screws (10), SS304 washer (20), SS304 Nut (20), Suitable spanner (2), Silicon Gasket (3), Fixing Hole (7), 6.5 mm electrode port with locking nut (PEEK) (Total 4 – Two for each compartment).
Temperature control – cooling glass tubes included (2)

1000 mL H-Cell, PTFE - Gamry Part #990-00553
Includes:

PTFE reservoirs (2), SS304 Screws (10), SS304 washer (20), SS304 Nut (20), Suitable spanner (2),
Silicon Gasket (3), Fixing Hole (7), 6.5 mm electrode port with locking nut (PEEK) (Total 4 – Two for each compartment).
Temperature control – cooling glass tubes included (2)
