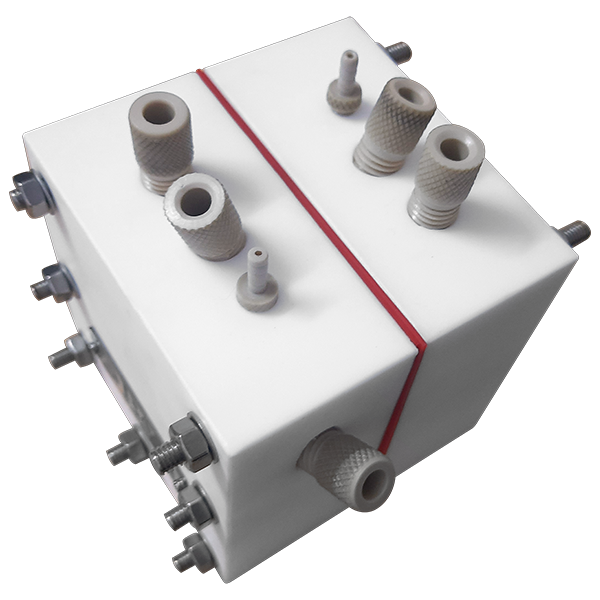

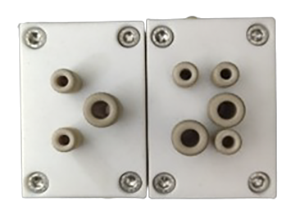

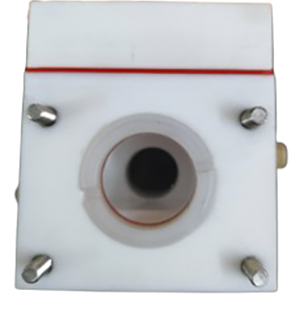

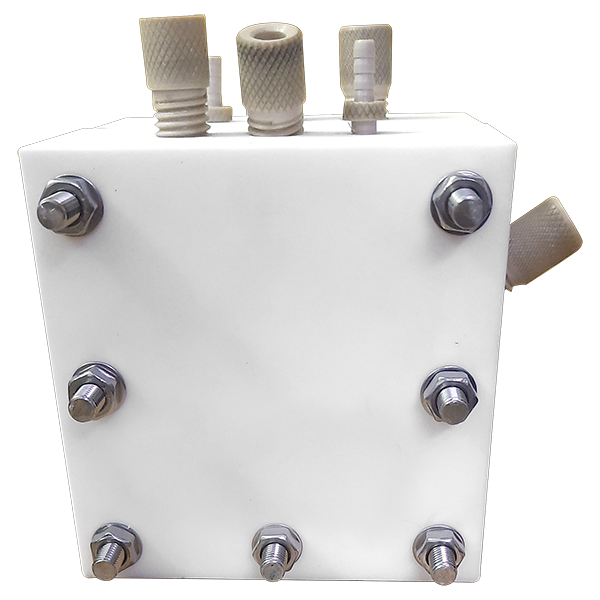

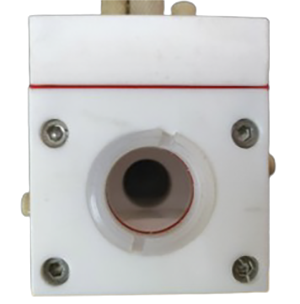

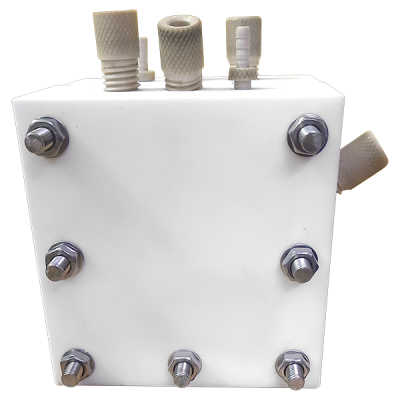

The PTFE Photo-Electrochemical H-Cell is a horizontally mounted, dual compartment H-Cell setup with a quartz window for photo-based electrocatalysis studies. It is gas-tight with separate chambers, each having gas inlet and outlet for bubbling solutions and evacuating gases.
Available: 20 mL, 50 mL, 100 mL, 500 mL, and 1000 mL.
20 mL PTFE Photo-Electrochemical H-Cell - Gamry Part #990-00554
Includes:
PTFE reservoirs with three-electrode set-up (2), Quartz window (1), Spacer (2), Grip nuts (2), Screws (2), Purge adaptor (2), PTFE support holder (2), Top silicon dummy (4), Plugs (6), Silicon tube 0.5 meters (4), Silicon septa (6)
50 mL PTFE Photo-Electrochemical H-Cell - Gamry Part #990-00555
Includes:
PTFE reservoirs with three-electrode set-up (2), Quartz window (1), Spacer (2), Grip nuts (2), Screws (2), Purge adaptor (2), PTFE support holder (2), Top silicon dummy (4), Plugs (6), Silicon tube 0.5 meters (4), Silicon septa (6)
100 mL PTFE Photo-Electrochemical H-Cell - Gamry Part #990-00556
Includes:
PTFE reservoirs with three-electrode set-up (2), Quartz window (1), Spacer (2), Grip nuts (2), Screws (2),
Purge adaptor (2), PTFE support holder (2), Top silicon dummy (4), Plugs (6), Silicon tube 0.5 meters (4), Silicon septa (6)
500 mL PTFE Photo-Electrochemical H-Cell - Gamry Part #990-00557
Includes:
PTFE reservoirs with three-electrode set-up (2), Quartz window (1), Spacer (2), Grip nuts (2), Screws (2),
Purge adaptor (2), PTFE support holder (2), Top silicon dummy (4), Plugs (6), Silicon tube 0.5 meters (4), Silicon septa (6)
1000 mL PTFE Photo-Electrochemical H-Cell - Gamry Part #990-005558
Includes:
PTFE reservoirs with three-electrode set-up (2), Quartz window (1), Spacer (2), Grip nuts (2), Screws (2), Purge adaptor (2), PTFE support holder (2), Top silicon dummy (4), Plugs (6), Silicon tube 0.5 meters (4), Silicon septa (6)
