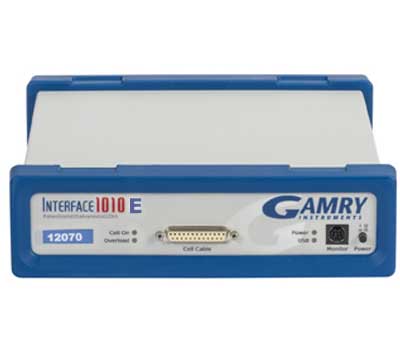

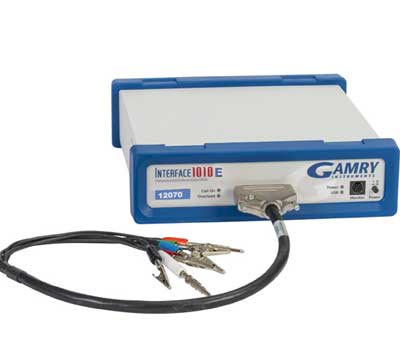

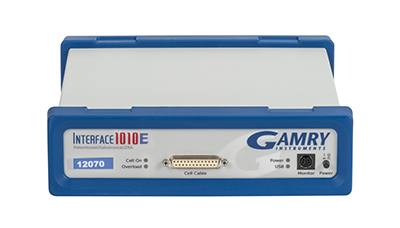

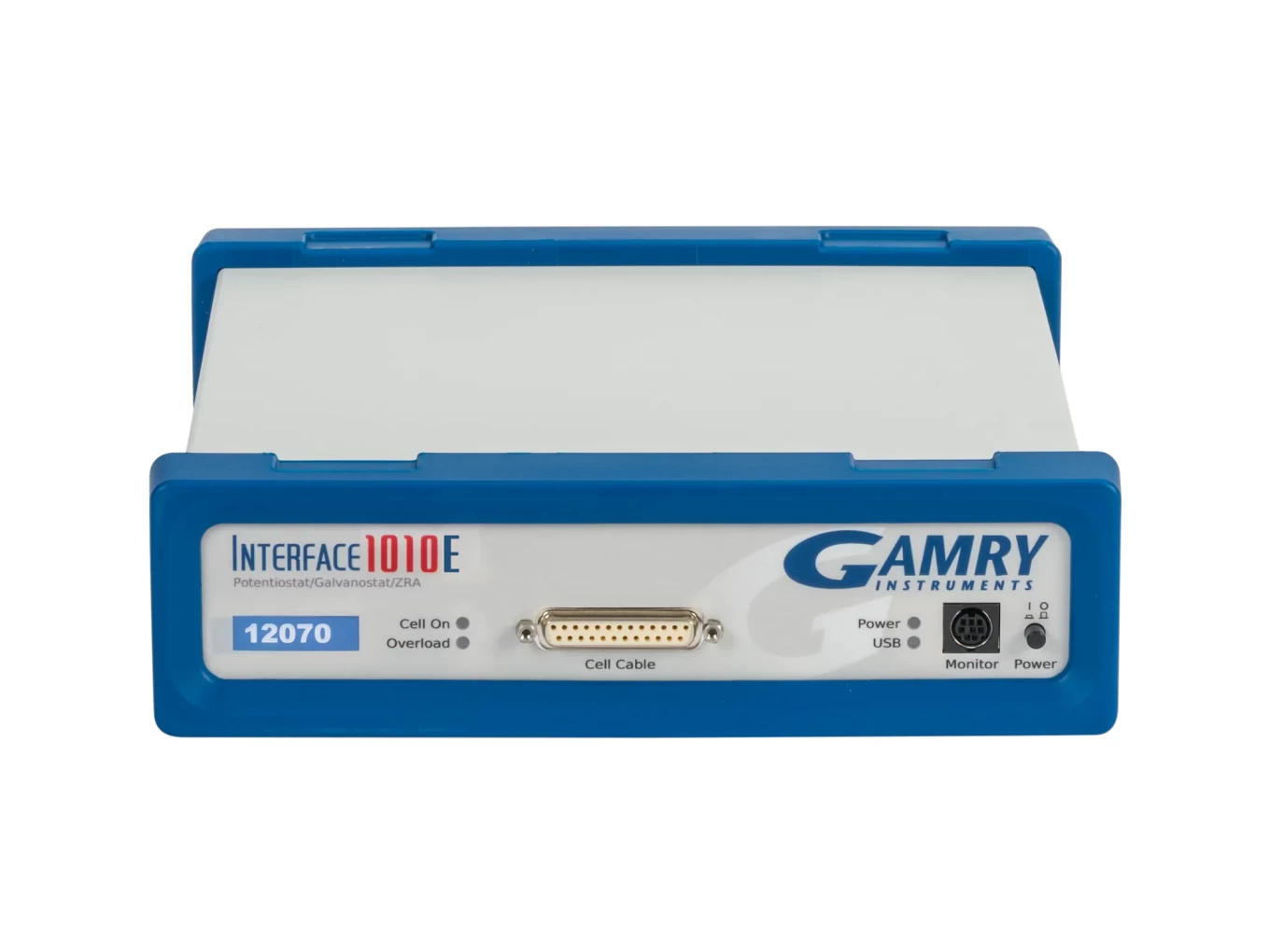

The Interface 1010ETM is an updated version of our extremely popular Interface 1000E. We've extended EIS to 2 MHz and added temperature monitoring. It is a full-featured potentiostat capable of performing all techniques, including electrochemical impedance spectroscopy.
Key features include:
For applications including:
Rating: 4.7
Organization: mike.e.miller@medtronic.com
Application Area: Analytical electrochemistry
"This is a great potentiostat, much easier to set up and use compared to the older PCI based series G potentiostats. Removing the software codes makes setup and interchanging computers..."
If you're looking for a full-featured potentiostat capable of performing all techniques, including electrochemical impedance spectroscopy, for applications such as physical electrochemistry, electrochemical corrosion, battery testing, fuel cell testing, dye solar cell testing, and sensor development, then the Interface 1010E is the right potentiostat for you.

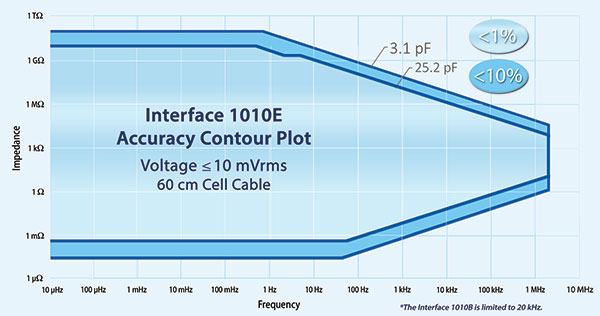

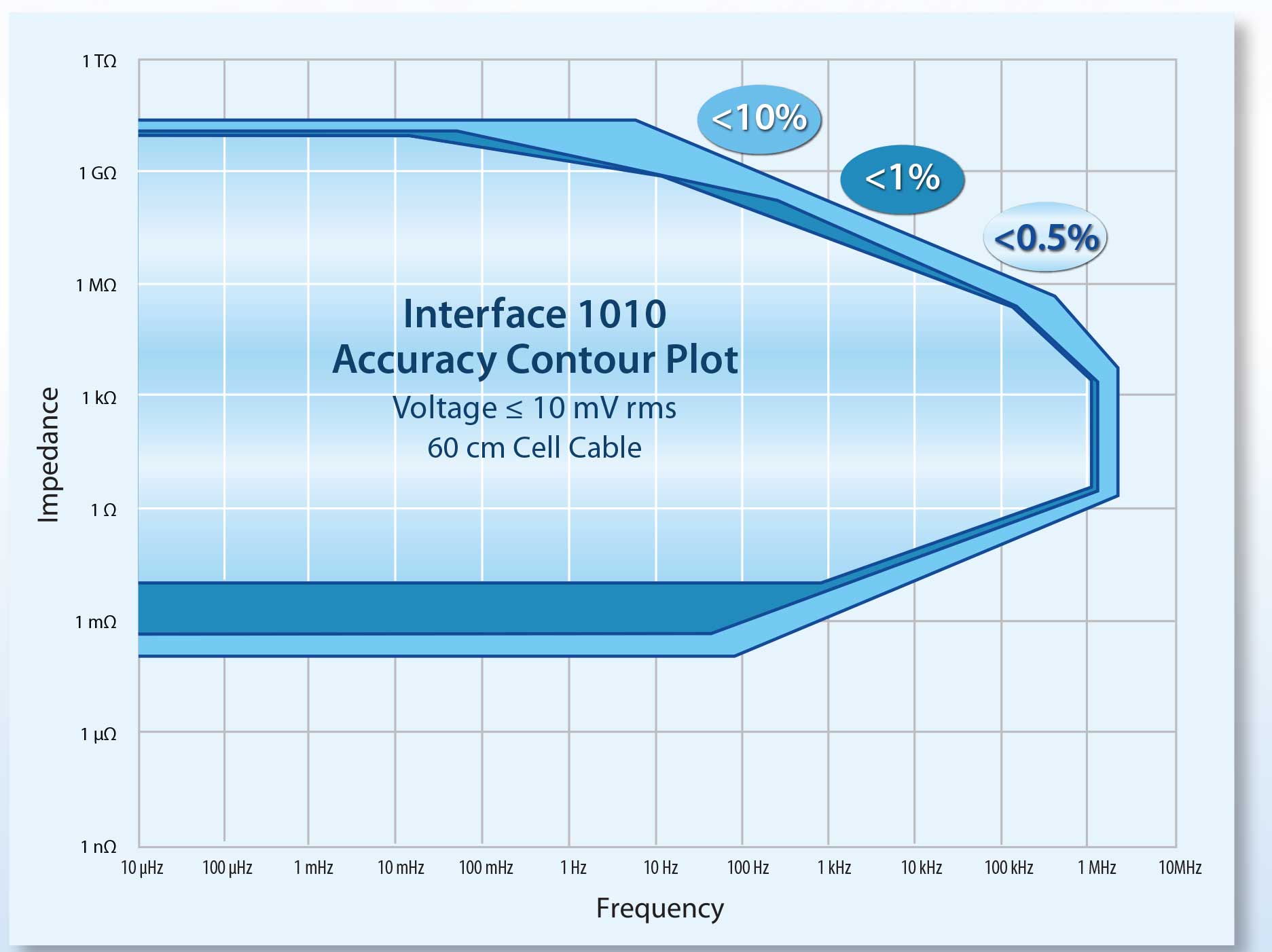

Gamry provides Accuracy Contour Plots for every one of our potentisotats that is EIS-capable. The accuracy contour plot provides a detailed look at the performance you can expect from your potentiostat in real-world situations. The results include the cell cable. Accuracy contour plots are important because they let you compare the performance of potentiostats from different manufacturers to ensure you are getting the best possible measurement.

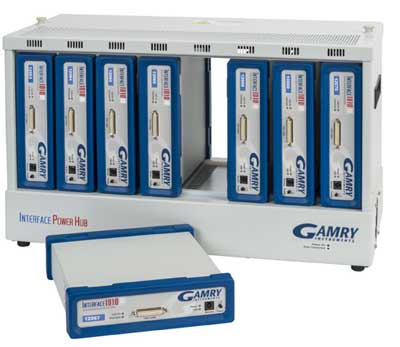

The Interface 1010E potentiostat can be configured as a single-channel potentiostat, bipotentiostat, or multichannel-potentiostat. Gamry provides you with the flexibility you need to get more done.
Below are additional details regarding the capabilities of the Interface 1010E potentiostat. Each bullet point contains a list of the type of techniques available for the potentiostat to run.
Other details
Interface 1010E - Part #992-00129 (992-129)
SYSTEM |
|
| Potentiostat | Yes |
| Galvanostat | Yes |
| Zero Resistance Ammeter | Yes |
| Floating (Isolated from Earth Ground) | Yes |
| Cell Connections | 2, 3, or 4 |
| Maximum Current | ±1 A |
| Current Ranges | 9 (10 nA - 1 A) |
| Current Ranges (including internal gain) |
11 |
| Minimum Current Resolution | 3.3 fA |
| Maximum Applied Potential | ±12 V |
| Rise Time | <1 μs |
| Minimum Time Base | 10 μs |
| Noise and Ripple | <20 μV rms |
| Weight | 2.4 kg |
| Dimensions | 24 (W) x 6 (H) x 27 (D) |
CONTROL AMPLIFIER |
|
| Compliance Voltage | ±20 V (@ 1A) |
| Output Current | >±1 A |
| Speed Settings | 5 |
| Unity Gain Bandwidth | 980, 260, 40, 4, 0.4 kHz |
EIS MEASUREMENT |
|
| EIS | 10 μHz - 2 MHz |
| EIS Accuracy | See Accuracy Contour Plot |
| AC Amplitude | 2.33 V maximum 50 μV minimum |
ELECTROMETER |
|
| Input Impedance | >1012 Ω |
| Input Current (typical) | <20 pA |
| Bandwidth | >15 MHz |
| CMRR | >86 dB (10 kHz) >60 dB (1 MHz) |
POTENTIAL |
|
| Applied Accuracy | ±1 mV ±0.2% of setting |
| Applied Resolution | 200 μV, 50 μV, 12.5 μV/bit |
| Measured Accuracy | ±1 mV ±0.3% of reading |
| Measured Resolution | 1 μV, 10 μV, 100 μV, 400 μV/bit |
CURRENT |
|
| Applied Accuracy | ±5 pA ±0.3% of range |
| Applied Resolution | 0.0033% full-scale/bit |
MEASURED CURRENT |
|
| Measured Accuracy | ±5 pA ±0.3% of range |
| Measured Resolution | 0.0033% full-scale/bit |
| Bandwidth | >10 MHz (1A - 100 μA) >1.5 MHz (10 μA) >0.15 MHz (1 μA) |
