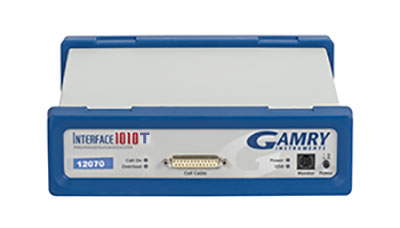

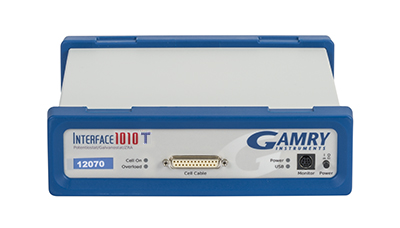

The Interface 1010T™ is a perfect potentiostat for use in undergraduate and graduate teaching labs.
Key features include:
- Maximum Current - ± 100 mA
- Maximum Applied Potential - ± 5 V
- EIS - 10 μHz - 20 kHz
Menu
Close
Potentiostats
Interface 1010T
Reliable results and good quality of devices for a long lasting use.
Rating: 4.7
Organization: InnCoa GmbH
Application Area: Electrochemical corrosion analysis (DC + AC)
"This device is in addition to our REF600.
We use both in parallel for a wide variety of corrosion experiments. So from the software this is a really good solution..."
1 Reviews | Read More Reviews
System Highlights
The Interface 1010T is an entry-level potentiostat designed for undergraduate and graduate teaching labs. It provides all of the capabilities needed for getting students introduced to physical and analytical electrochemistry. It even provides for potentiostatic EIS up 20 kHz.
- Physical Electrochemistry - Techniques such as cyclic voltammetry, chronoamperometry, and chronopotentiometry.
- Pulse Voltammetry - Techniques such as differential pulse voltammetry, normal pulse voltammetry, Osteryoung square wave voltammetry, and associated stripping techniques.
- Electrochemical Impedance Spectroscopy - Potentiostatic EIS up to 20 kHz.
See the Specifications tab for the instrument specifications. The Interface 1010T can be upgraded to a fully-featured Interface 1010E with an infield upgrade. This allows you to get a low-cost potentiostat for teaching purposes that can later be upgraded to a fully-capable research-grade potentiostat able to perform experiments for a wide variety of applications.
1010T Starter Package
The Interface 1010T Potentiostat/Galvanostat/ZRA and Starter Pack is designed to help people understand and start making measurements sooner.
The kit includes:
- Interface 1010T Potentiostat/Galvanostat/ZRA
- Five experiments
- Student and Teacher’s manuals (digital)
- Cells and electrodes
Experiments have been chosen to help you learn a variety of techniques from cyclic voltammetry to pulse techniques to corrosion techniques and even electrochemical impedance spectroscopy.
Cyclic Voltammetry
- Determine the redox potential and diffusion coefficient of potassium ferricyanide.
Determination of Working Area of an Electrode
- Calculate the electroactive area of the WE. Understand concentration distance profiles. Familiarization with the Cottrell and Anson equations
Comparison of Pulse Techniques
- Compare different pulse techniques. Determine amount of copper in an unknown water sample
Corrosion of Mild Steel at different pHs.
- Determine the corrosion rates for mild steel at different pHs.
Electrochemical Impedance Spectroscopy
- Perform EIS on a network of resistors and capacitors. Model EIS data using an equivalent circuit to extra resistor and capacitor values.
Downloads
Lab Course in Electrochemistry
Materials Included
Below is a table of all materials Gamry Instruments supplies in the Laboratory Course in Electrochemistry to perform all eleven experiments for ten pairs of students.
Part number |
Description |
Quantity |
|
| 820-00005 | Sample of mild steel | 30 | |
| 932-00024 | Platinum working electrode | 1 | |
| 932-00009 | Platinum microlectrode | 1 | |
| 935-00065 | Micro stirring bar | 1 | |
| 935-00135 | Platinum screen-printed electrode | 60 | |
| 935-00137 | Graphite screen-printed electrode | 40 | |
| 972-00065 | Cuvette cap | 1 | |
| 987-00099 | DigiElch student edition | 1 | |
| 988-00049 | Student edition book | 20 | |
| 988-00050 | Teacher edition book | 1 | |
| 990-00193 | Dr. Bob’s Cell kit | 1 | |
| 990-00195 | Polishing kit | 1 | |
| 990-00196 | EuroCell kit | 1 | |
| 990-00419 | AC Dummy Cell | 1 | |
| 990-00530 | Screen-printed electrode cell stand | 1 | |
Specifications
SYSTEM |
|
| Potentiostat | Yes |
| Galvanostat | Yes |
| Zero Resistance Ammeter | Yes |
| Floating (Isolated from Earth Ground) | Yes |
| Cell Connections | 2, 3, or 4 |
| Maximum Current | ± 100 mA |
| Current Ranges | 6 (1 uA - 100 mA) |
| Current Ranges (including internal gain) |
8 (10 nA - 100 mA) |
| Minimum Current Resolution | 0.3 pA |
| Maximum Applied Potential | ± 5 V |
| Rise Time | <1 μs |
| Minimum Time Base | 1 ms |
| Noise and Ripple | <20 μV rms |
| Weight | 2.4 kg |
| Dimensions | 24 (W) x 6 (H) x 27 (D) 27 cm |
CONTROL AMPLIFIER |
|
| Compliance Voltage | ±20 V (@ 1A) |
| Output Current | >±1 A |
| Speed Settings | 5 |
| Unity Gain Bandwidth | 980, 260, 40, 4, 0.4 kHz |
EIS MEASUREMENT |
|
| EIS | 10 uHz - 20 kHz |
| EIS Accuracy | 99% |
| AC Amplitude | 2.33 V maximum 17.8 μV minimum |
ELECTROMETER |
|
| Input Impedance | >1012 Ω |
| Input Current (typical) | <20 pA |
| Bandwidth | >10 MHz |
| CMRR | >80 dB (10 kHz) >60 dB (1 MHz) |
POTENTIAL |
|
| Applied Accuracy | ±1 mV ±0.2% of setting |
| Applied Resolution | 200 μV, 50 μV, 12.5 μV/bit |
| Measured Accuracy | ±1 mV ±0.3% of reading |
| Measured Resolution | 1 μV, 10 μV, 100 μV, 400 μV/bit |
CURRENT |
|
| Applied Accuracy | ±5 pA ±0.3% of range |
| Applied Resolution | 0.0033% full-scale/bit |
MEASURED CURRENT |
|
| Measured Accuracy | ±5 pA ±0.3% of range |
| Measured Resolution | 0.0033% full-scale/bit |
| Bandwidth | >10 MHz (1A - 100 μA) >1.5 MHz (10 μA) >0.15 MHz (1 μA) |
