Reference 3000 & 30k Booster
Rapid, High-Current Pulsing & Superior, Low-Impedance EIS
For those interested in determining the characteristics of batteries, especially by discharging them to see their changes in impedance, Gamry Instruments offers the Reference™ 3000 potentiostat plus our 30k Booster. This combination of instruments is useful for running stress tests on batteries, by applying rapid, high-current pulses singly or repeatedly.

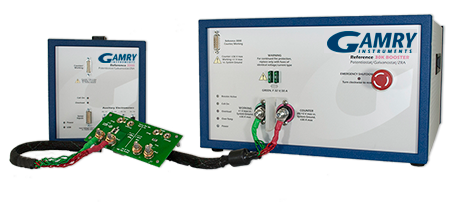

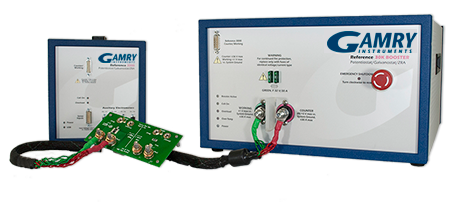

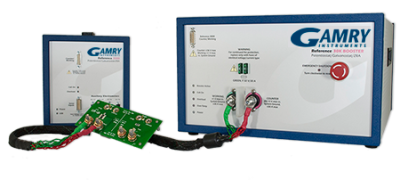

Fig. 1. Reference™ 3000 (left) with Reference™ 30k Booster (right), with Test and Cal cell (green).
Gamry’s Reference 3000 and Reference 30k Booster can accurately and reliably generate current pulses as short as the high tens of microseconds.
Reference 30K Booster
Nobody is faster
Distortion-free, rapid pulsing for charge and discharge

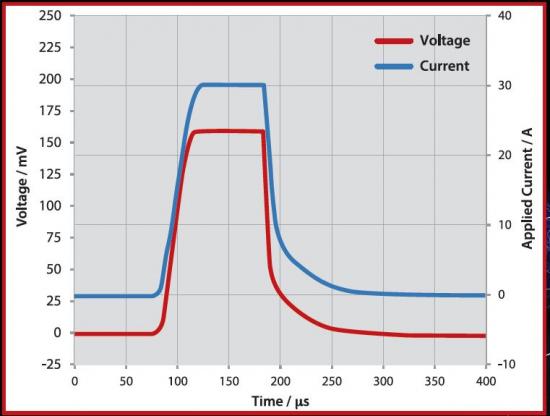

30 A Pulse on a 5 mOhm cell
Nobody goes lower
Up to 30A @ 20V, EIS to 300 kHz

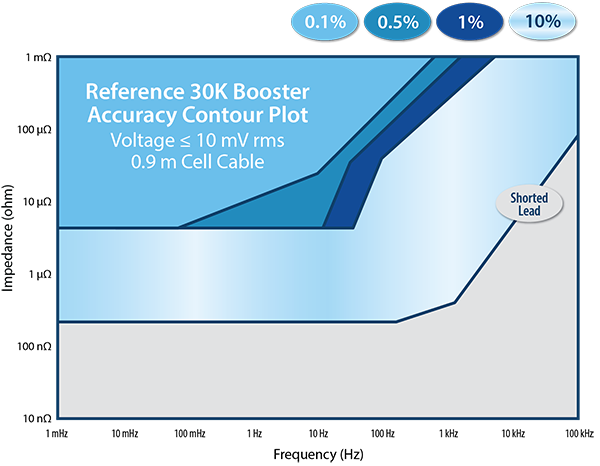

200 nOhm Shorted Lead Curve, 20 A rms, 0.9 m cell cable
Read our application note "High-current Pulses for Battery Research" and our Technical Note "The Value of Stack Mode Measurements".
Reference 3000 Specs
SYSTEM |
|
| Potentiostat | Yes |
| Galvanostat | Yes |
| Zero Resistance Ammeter | Yes |
| Floating (Isolated from Earth Ground) | Yes |
| Cell Connections | 2, 3, 4 5 or 21+ |
| Maximum Current | ±3 A@15V or ±1.5A@32V |
| Current Ranges | 11 (300 pA – 3 A) |
| Current Ranges (including internal gain) |
13 |
| Minimum Current Resolution | 92 aA |
| Maximum Applied Potential | ±32 V |
| Rise Time | <250 ns |
| Minimum Time Base | 3.333 μs |
| Noise and Ripple (typical) | <2 μV rms |
| Weight | 7 kg |
| Dimensions | 20 (W) x 23 (H) x 30 (D) cm |
CONTROL AMPLIFIER |
|
| Compliance Voltage | ±32 V |
| Output Current | >±3 A |
| Speed Settings | 5 |
| Unity Gain Bandwidth | 1100, 330, 50, 5.0, 0.5 kHz |
EIS MEASUREMENT |
|
| EIS | 10 μHz - 1 MHz |
| EIS Accuracy | See Accuracy Contour Plot |
| Voltage AC Amplitude | 3 V maximum |
| Current AC Amplitude | 3 A maximum |
ELECTROMETER |
|
| Input Impedance | >1014 Ω || <0.2 pF |
| Input Current (typical) | <6 pA |
| Bandwidth | >15 MHz at - 3 dB |
| CMRR | >80 dB (100 kHz) >60 dB (1 MHz) |
POTENTIAL |
|
| Applied Accuracy | ±1 mV ±0.2% of setting |
| Applied Resolution | 12.5 μV, 50 μV, 200 μV/bit |
| Measured Accuracy | ±1 mV ±0.2% of reading |
| Measured Resolution | High-Resolution Electrometer: 400 μV, 100 μV, 10 μV, 1 μV/bit High Voltage Electrometer: 1.6 mV, 400 μV, 40 μV, 4 μV/bit |
CURRENT |
|
| Applied/Measured Accuracy | ±5 pA ± 0.05% of range ±0.2% of value (3 A - 3 nA) or 0.5% of value (300 pA) |
| Applied/Measured Resolution | 0.0033% full-scale/bit |
| Bandwidth | >10 MHz (3 A - 3 mA) >0.15 MHz (30 μA) |
Reference 30k Booster Specs
SYSTEM |
|
| Dimensions | 37 cm W x 23 cm H x 44 cm D 14.5 in. W x 9 in. H x 17.5 in. D |
| Weight | 16 kg (35 pounds) |
OPERATION |
|
| Modes | Potentiostatic, Galvanostatic, ZRA |
| Agency Approval | CE |
DC CHARACTERISTICS |
|
| Compliance Voltage | +20 V, -2.5 V |
| Output Current | ±30 A |
| Accuracy | ±0.2% of scale ±0.2% of reading |
| Power Dissipation | 600 W to + rail 750 W to - rail |
AC CHARACTERISTICS |
|
| Slew Rate | 20 V/μS (maximum) |
| Unity Gain BW (typical) | 550 kHz (minimum) |
