The cell includes the following features:
- Central bearing assembly for allowing use of blanketing gases
- Jacketed glass cell for temperature control
- PEEK lid with six threaded holesfor various adapters, counter electrodes, gas bubblers, thermometer, etc.
- Stoppers (PEEK), 24/40 and 24/25 joint adapters (PEEK, SJ28 joint adapter (PEEK)
The cell kit includes one 30 cm (12 in.) graphite rod counter. Common electrochemical setups will leave 2-3 ports available to allow other experimental needs (condenser, stirring, in-situ imaging, solution adjustments, etc.).
The cell top and cell bottom are firmly secured by a clamp. The standard cylinder electrode is 12.7 mm in diameter with 6.06 cm2 exposed area. Standard materials such as 1018CS, 430SS, and 316SS are available. Users can also machine their own samples if they wish.
*Specifications subject to change

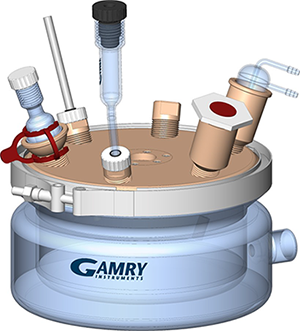

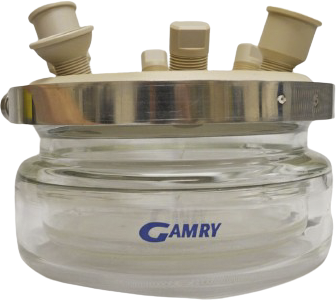

The 1L RCE Cell (Part #992-00180) is designed for rotating cylinder studies.
